Processor 9000 and 9100 Series Datasheet 77

Thermal Specifications

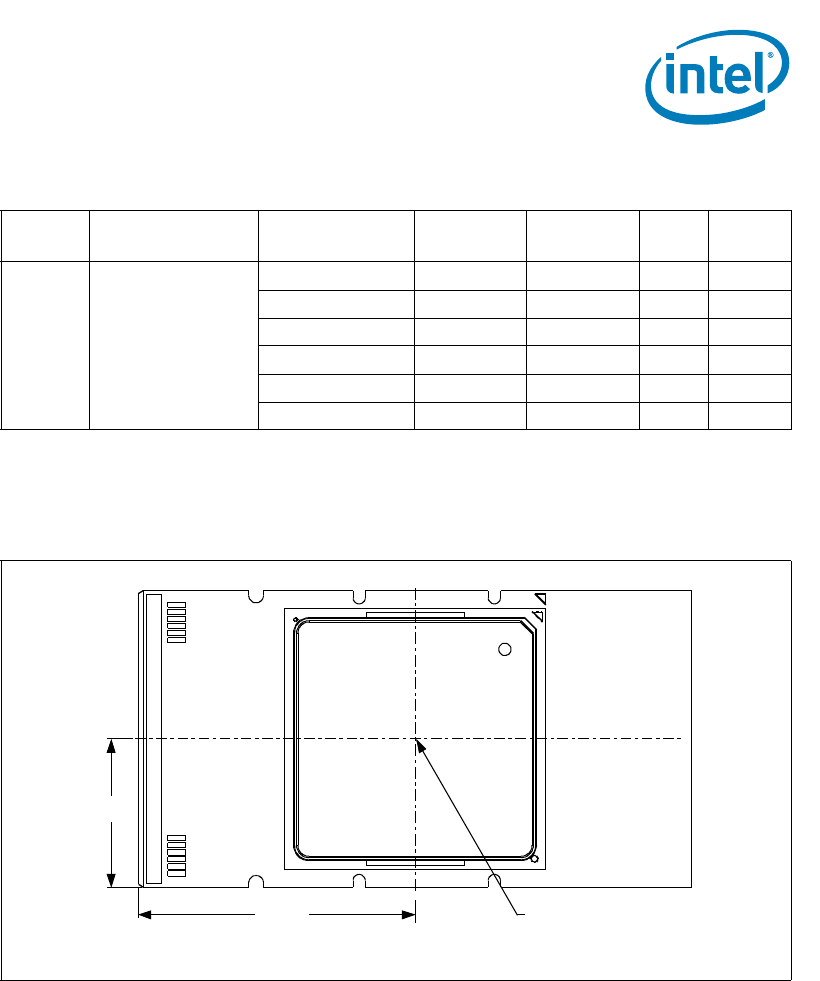

Figure 5-2 contains dimensions for the thermocouple location on the processor

package. This is the recommended location for placement of a thermocouple for case

temperature measurement.

Table 5-1. Case Temperature Specification

Symbol Parameter

Core

Frequency

Minimum Maximum Unit Notes

Tcase Case Temperature 1.6GHz/24MB 5 76 °C

1.6GHz/18MB 5 76 °C

1.6GHz/9MB 5 76 °C

1.42GHz/12MB 5 76 °C

1.4GHz/12MB 5 76 °C

1.6GHz/6MB 5 74 °C

Figure 5-2. Itanium

Processor Package Thermocouple Location

All dimensions are measured in mm. Not to scale.

001103a

Thermocouple Location

45.00

4.13

1 2 ... 72 73 74 75 76 77 78 79 80 81 82 ... 107 108
