70 Dual-Core Intel

Itanium

Processor 9000 and 9100 Series Datasheet

Mechanical Specifications

Note: Keepout zones indicate no components will be on the processor package.

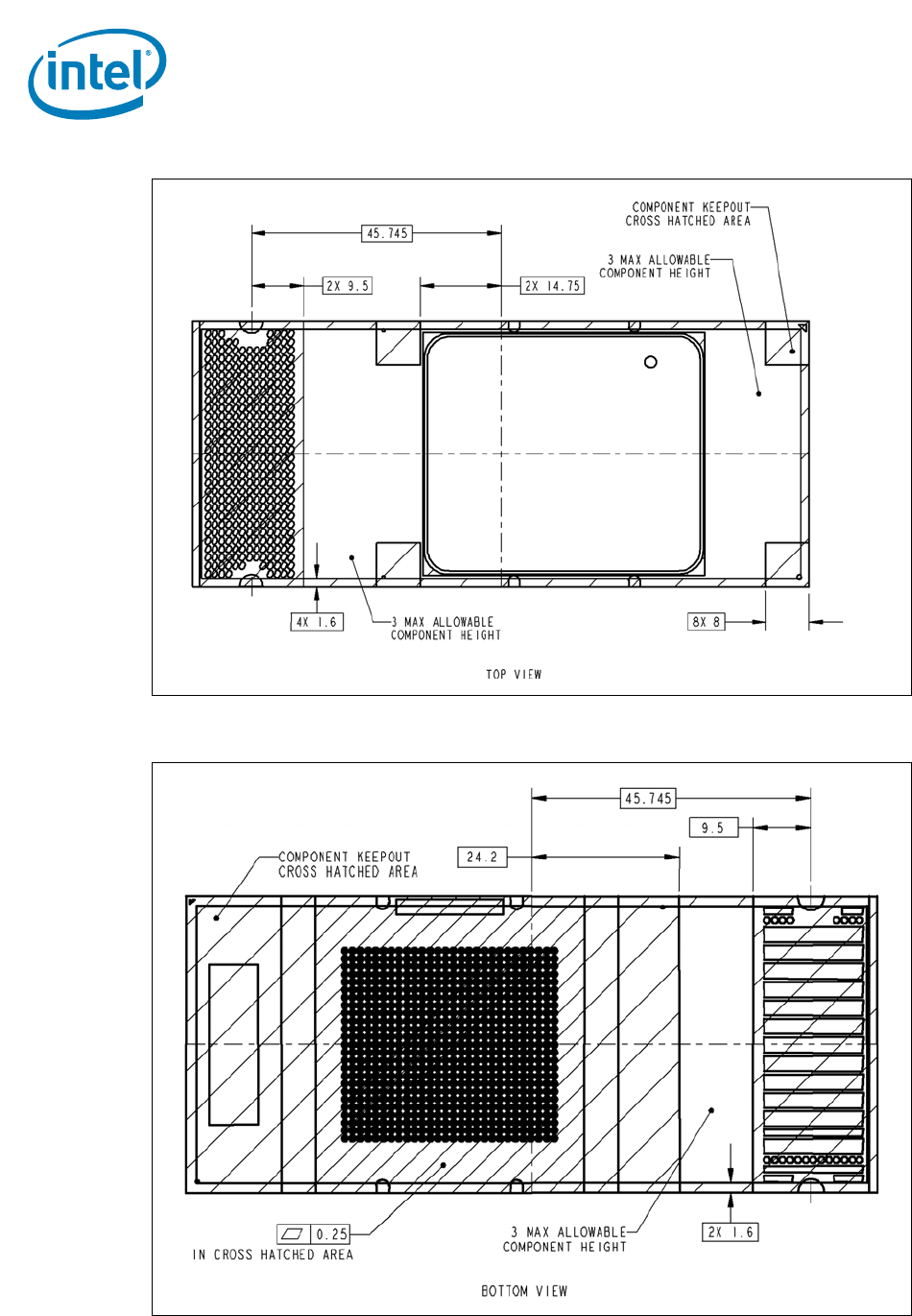

Figure 4-4. Processor Package Top-Side Components Height Dimensions

Figure 4-5. Processor Package Bottom-Side Components Height Dimensions
