Server Platforms SR1550AL and SR2500AL
Connect the cable to the midplane SAS ROMB board as shown below.
AF000483

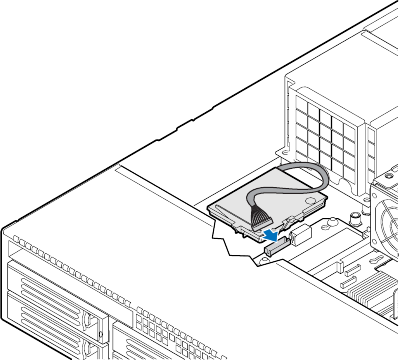

Figure 7. Routing and Connecting the Cable inside the Chassis
Finish Up the Hardware
1. Reinstall any components inside of the server chassis that you needed to remove. See your
server board or chassis documentation for instructions.
2. Install the server chassis cover and connect the AC power supply.
