Intel® Solid-State Drive DC S3500

April 2013 Product Specification

Order Number: 328860-001US 15

4.0 Pin and Signal Descriptions

4.1 2.5-inch Form Factor Pin Locations

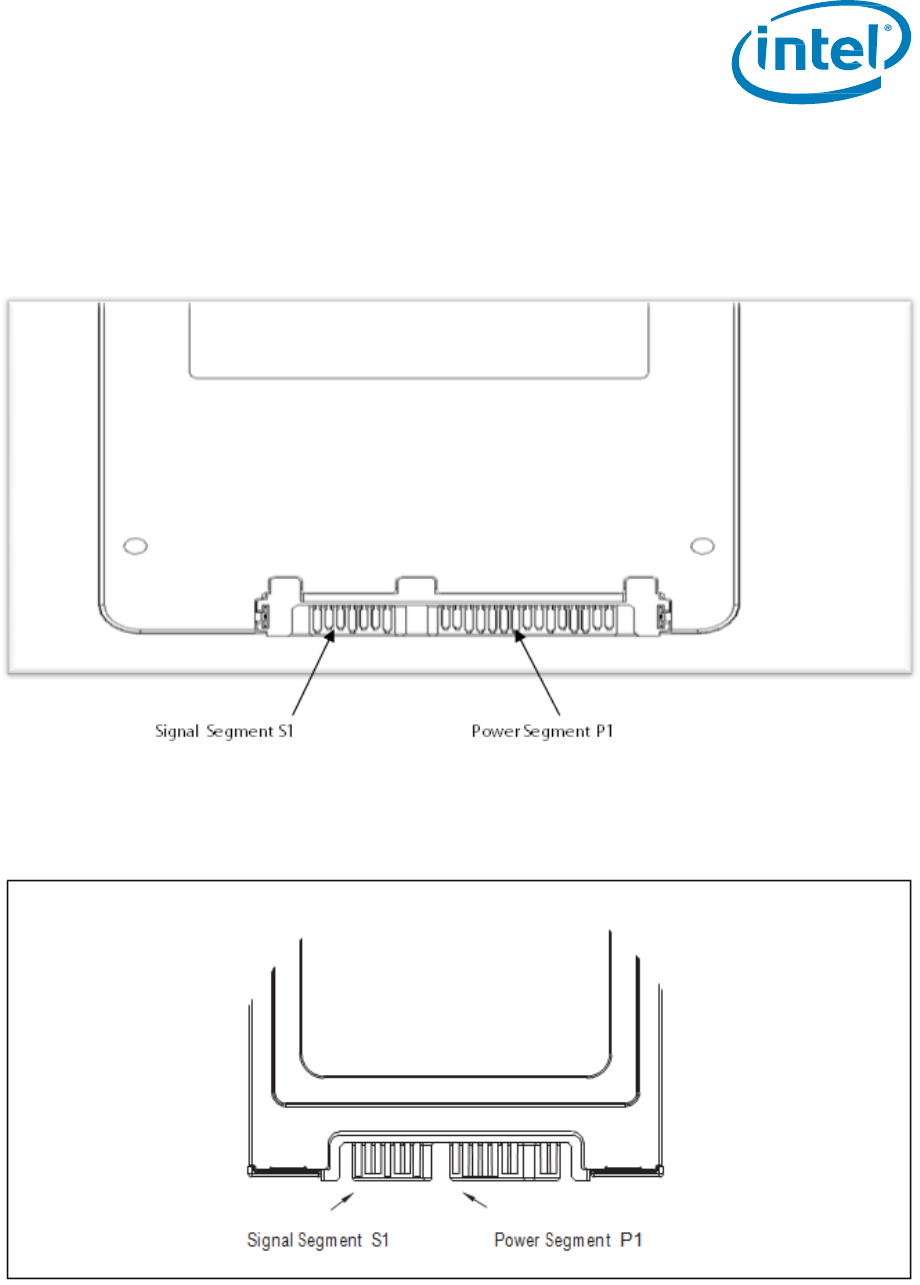

Figure 3: Layout of 2.5-inch Form Factor Signal and Power Segment Pins

Note: 2.5-inch connector supports built in latching capability.

4.2 1.8-inch Form Factor Pin Locations

Figure 4: Layout of 1.8-inch Form Factor Signal and Power Segment Pins
