Intel SR1500AL User Manual Page 58
- Page / 180
- Table of contents
- TROUBLESHOOTING
- BOOKMARKS
Rated. / 5. Based on customer reviews
36 Intel
®
Server System SR1500AL User’s Guide

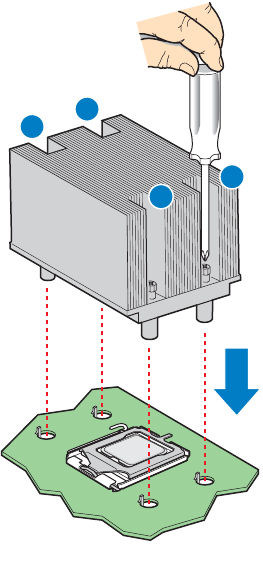

Figure 27. Installing the Heat Sink (2U Passive Heat Sink Shown)
4. Reinstall and reconnect any parts you removed or disconnected to reach the
processor sockets.
5. Replace the system's cover and reconnect the AC power cord(s). For instructions on
installing the system's cover, see “Installing the System Cover”.
Removing a Processor
1. Observe the safety and ESD precautions in “Safety Information”.
2. Turn off all peripheral devices connected to the server. Turn off the server.
3. Remove the AC power cord(s) from the server.
4. Remove the server's cover. See the documentation that came with your server
chassis for instructions on removing the server's cover.
5. Loosen the four captive screws on the corners of the heat sink.
6. Twist the heat sink slightly to break the seal between the heat sink and the
processor.
7. Lift the heat sink from the processor. If it does not pull up easily, twist the heat sink
again. Do not force the heat sink from the processor. Doing so could damage the
processor.
8. Lift the processor lever.
TP02077
2
3
1
4
