6 Intel
®
Server System SR1500AL User’s Guide
Chassis Component Identification
This section helps you identify the components of your server system. If you are near the
system, you can also use the Quick Reference Label provided on the inside of the chassis
cover to assist in identifying components.
Internal Components

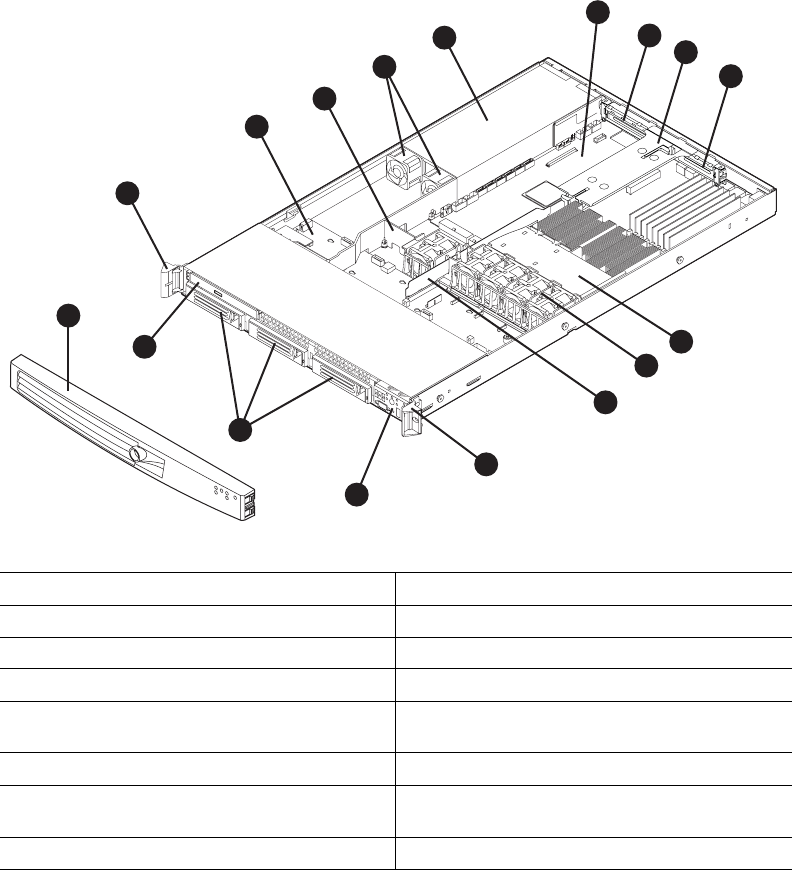

Figure 2. ChassisComponents
A. Rack handles I. PCI card bracket (low profile)
B. Backplane J. Processor air duct
C. Air baffle K. Fan module
D. Power supply fans L. Bridge board
E. Power supply M. Control panel (standard control panel
shown)
F. Server board N. Hard drive bays (drives not included)
G. PCI card bracket (full height) O. Slimline Optical Drive Bay (drive not
included)
H. PCI add-in riser assembly P. Front bezel (optional)
TP02154
A
B
E
C
D
F
H
I
J
K
L
A
O
N
M
G
P
