Intel® Solid-State Drive DC S3500 Series (M.2)
3.0 Mechanical Information
Figure 1 shows the physical information for the Intel SSD DC S3500 Series M.2 form factor type 2280-D5-BM.
All dimensions are in millimeters.

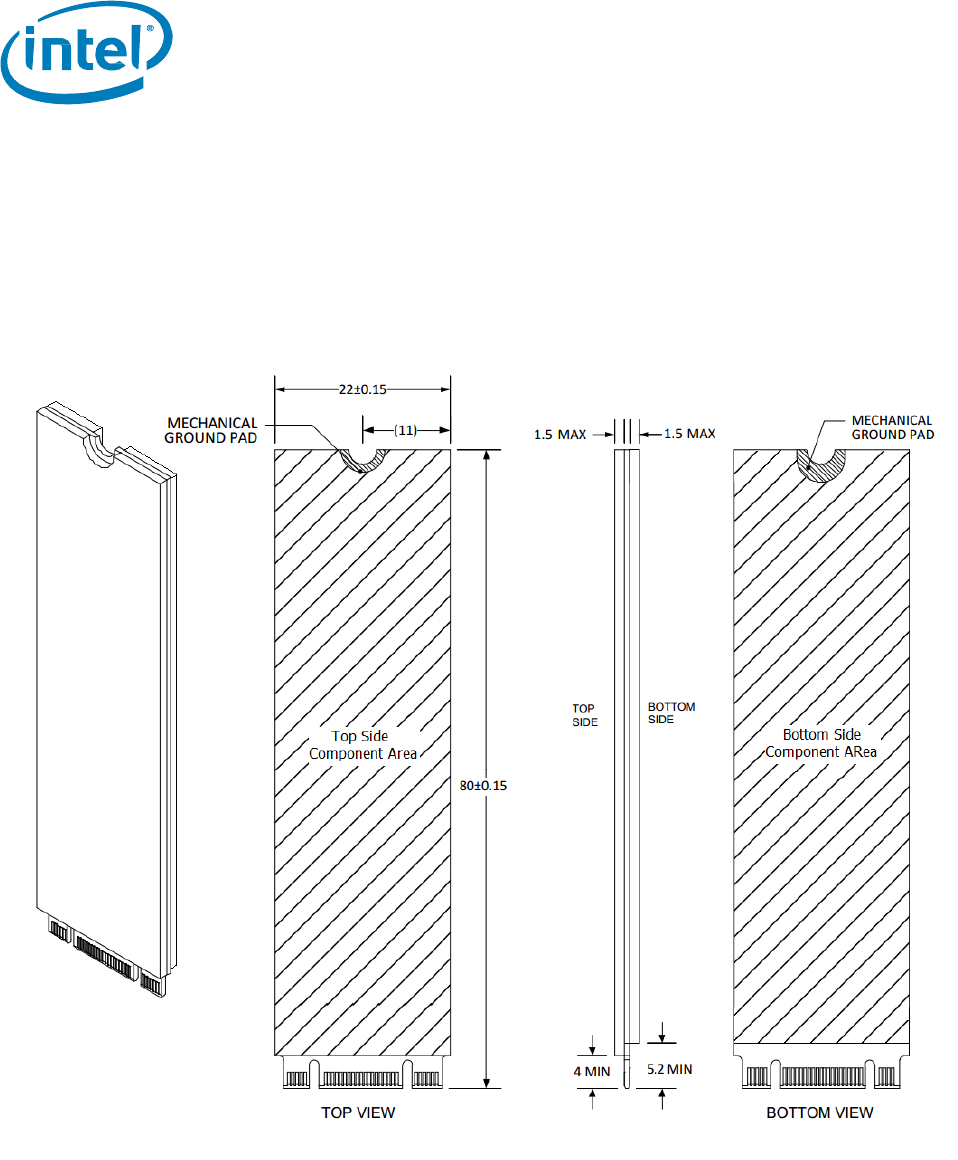

Figure 1: Intel SSD DC S3500 Series M.2 Dimensions
Product Specification Addendum January 2015
12 331061-002US
