Viglen SX220 User Guide 37

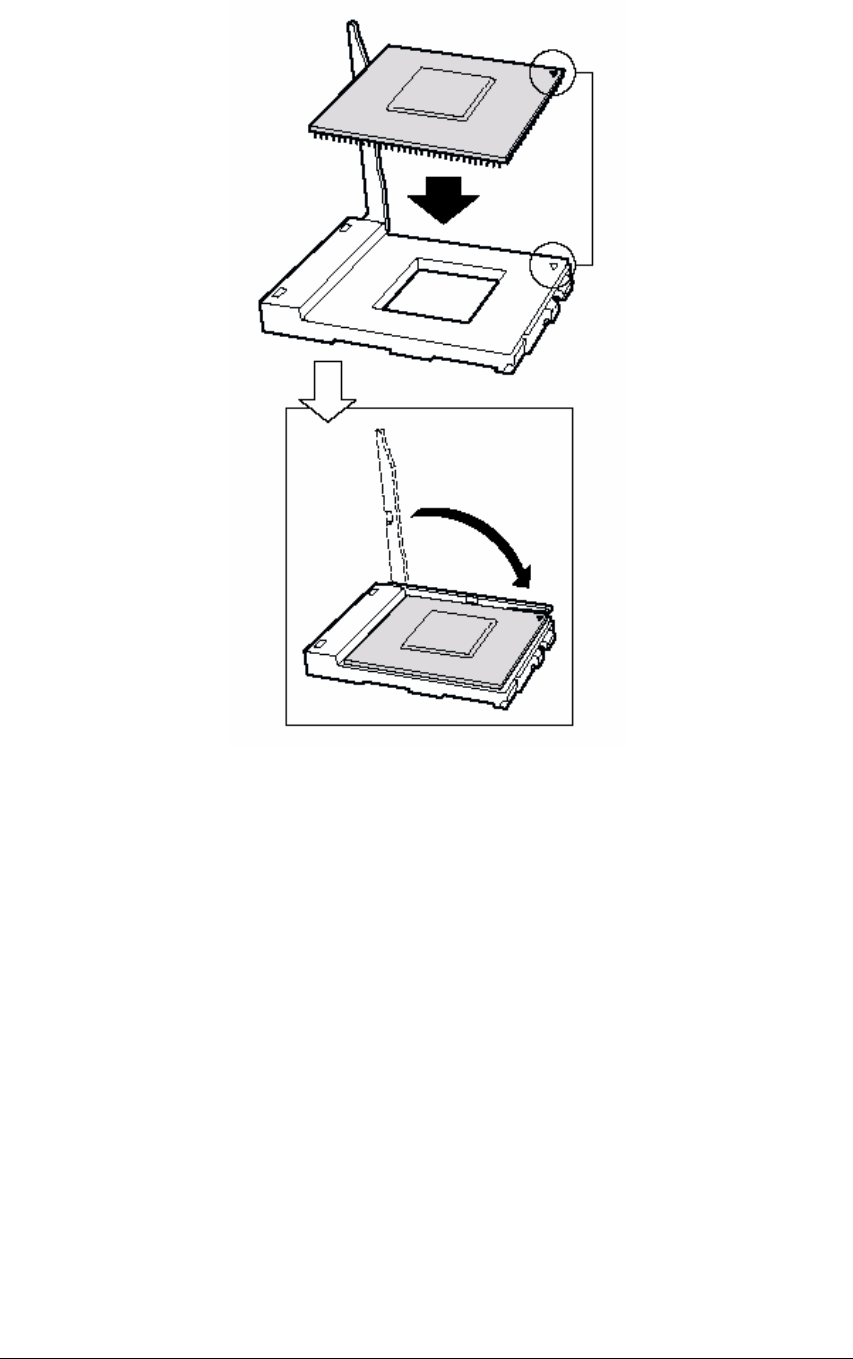

Figure 17: Inserting the Processor
7. Following the instructions packaged with the applicator, apply thermal grease to
the processor.
8. Position the heat sink slot (2) above the socket/processor slot (3).
9. Aligning the raised metal surfaces, place the heat sink on top of the processor.
10. Install the heat sink clip with pin (1) inserted into slot (2).
