Intel Storage System SSR212PP User Guide 91
14
PRELIMINARY
Connecting AC Power to a
Single-SP Storage System
This section describes how to connect power to an SSR212PPf (single-SP) storage
system.
Before You Start
To complete this procedure, you need the AC power cables appropriate to your power
source. These cables shipped with the storage system.
STEP 1. For each power supply in the storage system, plug a storage system power cord into the
power connector on each power supply in the storage system (Figure 37 or Figure 38).

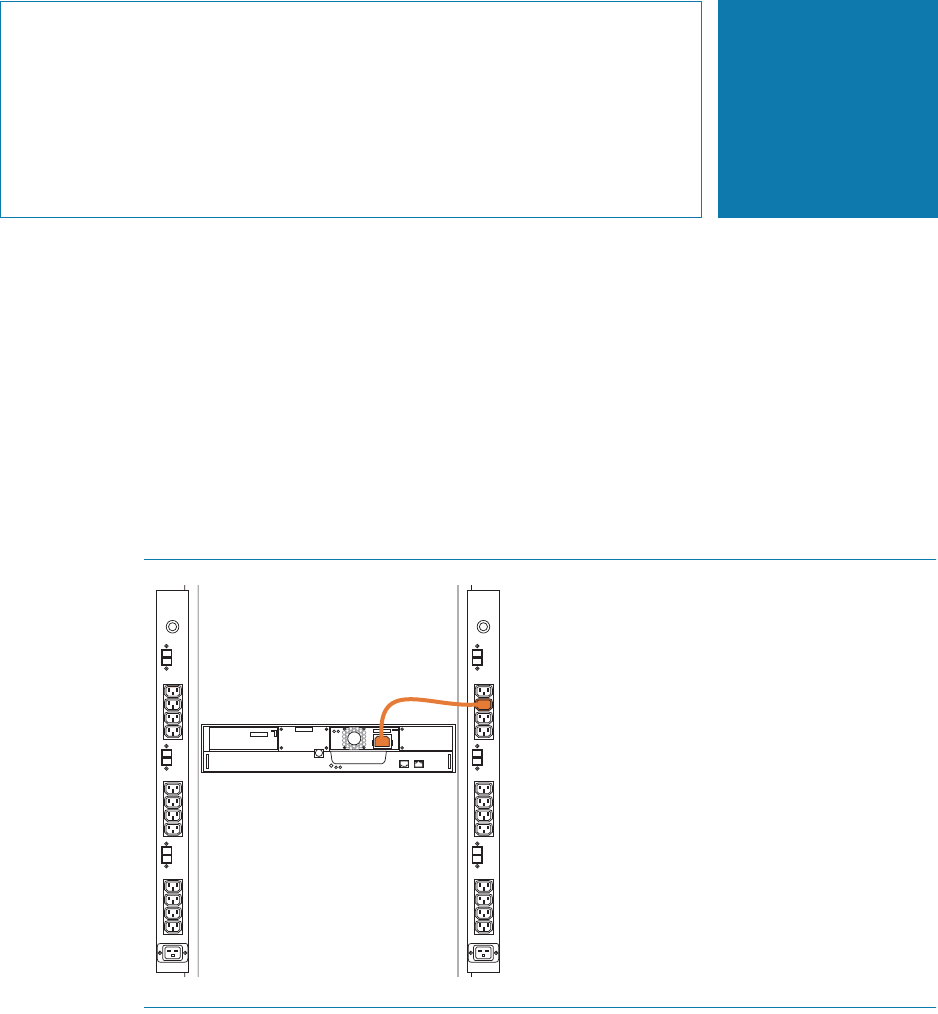

FIGURE 37. Connecting AC Power to an SSR212PPf or SSR212PPi with One Power
Supply
ON
I
OFF
O
ON
I
OFF
O
ON
I
OFF
O
ON
I
OFF
O
ON
I
OFF
O
ON
I
OFF
O
EMC3277
