40 Intel

Server System SR2520SA User’s Guide

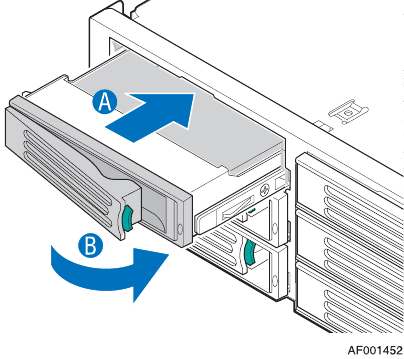

Figure 28. Install Drive Assemby into the Server System (SR2520SAX/

SR2520SAXS and SR2520SAXR/SR2520SAXSR)

11. Install the server system cover. For instructions, see “Installing the System Cover”.

12. (Optional) Install the front bezel. For instructions, see “Installing the Front Bezel”.

13. Plug all peripheral devices and the AC power cable(s) into the server.
