Electrical Specifications

42 Mobile Intel



Pentium



4 Processor-M Datasheet

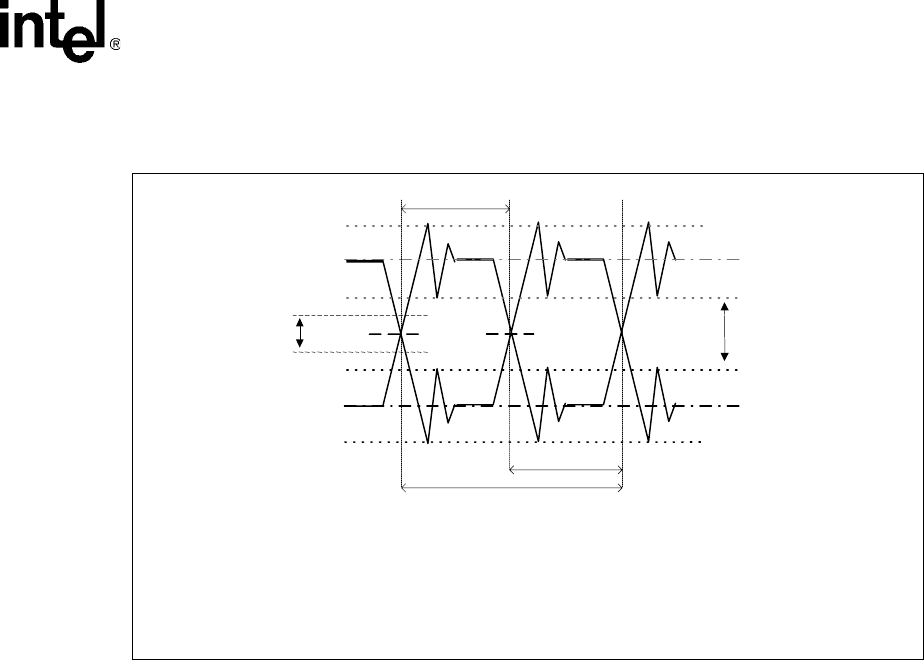

Figure 10. Differential Clock Waveform

Crossing

Voltage

Threshold

Region

Overshoot

Undershoot

Ringback

Margin

Rising Edge

Ringback

Falling Edge

Ringback,

BCLK0

BCLK1

Crossing

Voltage

Tph

Tpl

Tp = T1 (BCLK[1:0] period)

T2 = BCLK[1:0] Period stability (not shown)

Tph =T3 (BCLK[1:0] pulse high time)

Tpl = T4 (BCLK[1:0] pulse low time)

T5 = BCLK[1:0] rise time through the threshold region

T6 = BCLK[1:0] fall time through the threshold region
