Intel Desktop Board D201GLY Product Guide

LAN Subsystem Software

For LAN software and drivers, refer to the D201GLY link on Intel’s World Wide Web site

at:

http://support.intel.com/support/motherboards/desktop

RJ-45 LAN Connector LEDs

Two LEDs are built into the RJ-45 LAN connector located on the back panel (see

Figure 3).

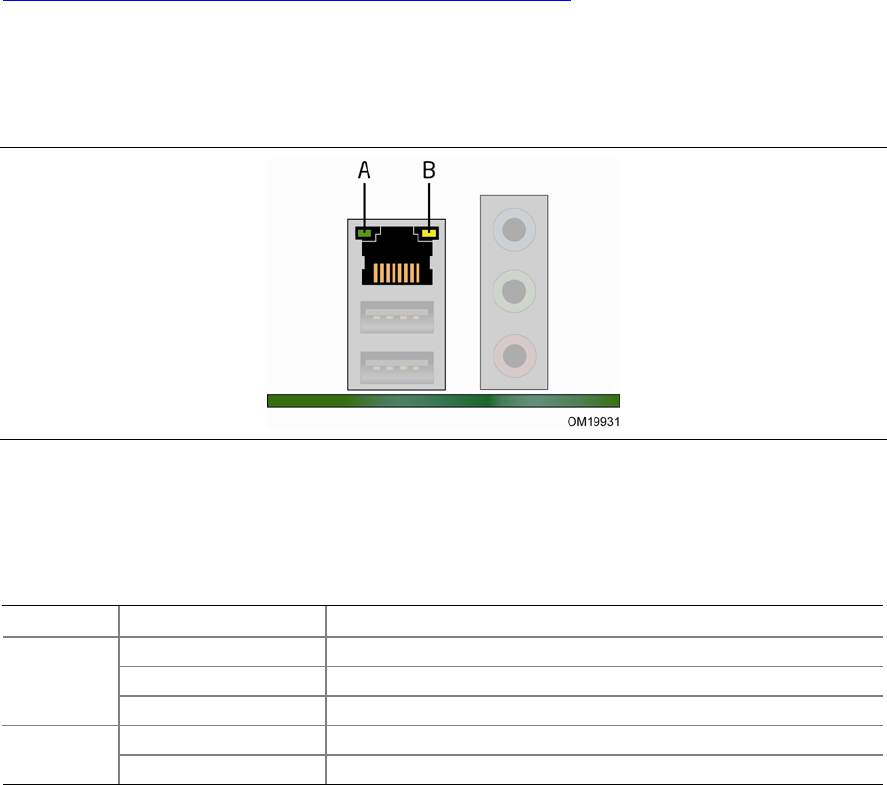

Figure 3. LAN Connector LEDs

Table 3 describes the LED states when the board is powered up and the

10/100 Ethernet LAN subsystem is operating.

Table 3. RJ-45 10/100 Ethernet LAN Connector LEDs

LED LED State Indicates

Off LAN link is not established A (Green)

On LAN link is established

Blinking LAN activity is occurring

Off 10 Mbits/s data rate is selected B (Yellow)

On (steady state) 100 Mbits/s data rate is selected
