Installing and Replacing Desktop Board Components

Installing a PCI Express Mini Card in the PCI

Express Half-Mini Card Slot

A PCI Express Half-Mini Card can be installed in the Desktop Board’s PCI Express

Half-Mini Card slot.

To install a PCI Express card in this slot, see Figure 15 and follow these steps:

1. Observe the

precautions in "Before You Begin" on page 15.

2. Locate the

PCI Express Half-Mini Card slot (Figure 1, Y).

3. Insert the card into the PCI Expres

s Mini Card connector (Figure 15, A) at a slightly

upward

angle.

4. Align the mounting holes and secure the card in place (Figure 15, B).

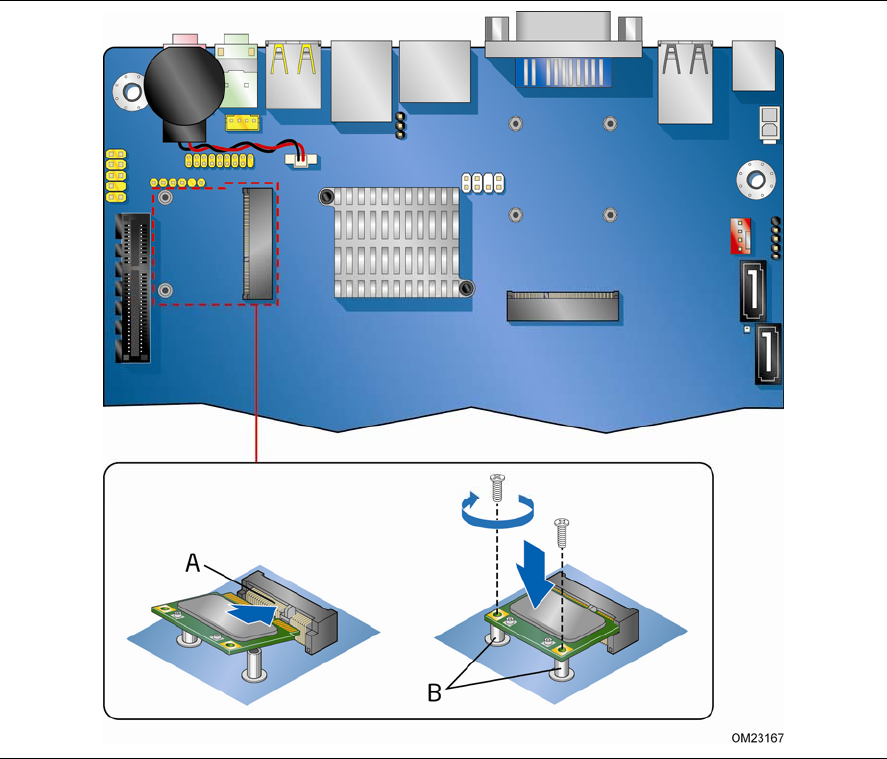

Figure 15. Installing a PCI Express Mini Card in the Half-Mini Card Slot
